Trucking and Hauling Collection

The Trucking and Hauling Calculators compute capacities and load weights for different shapes of loads with different types of content     CONTAINER SHAPES         Conic Cylinder           Capsule Shaped             Box Container               Spherical Tank

This collection of calculators has volume, total capacity weight and load weight calculators for shipping or trucking containers with different geometric shapes including the following:

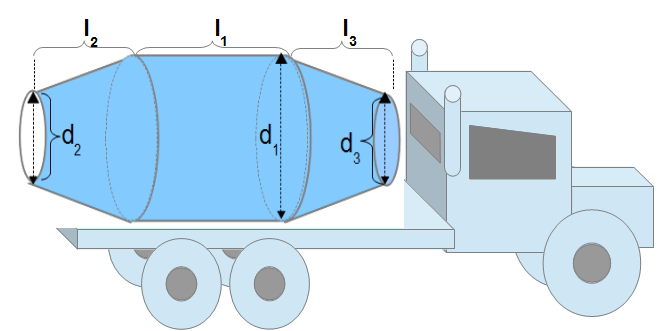

• Conic Cylinder:  This is a common configuration for the transport of liquid ranging from milk to diesel fuel.
• Spherocylinders (Capsule):  This is the common configuration of some liquids and many gases (e.g. liquid propane)

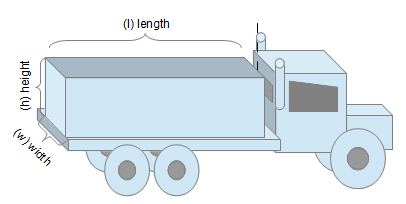

• Rectangular Box:  This is often the approximate shape of certain train cars, the bed of pickup truck and the bed of many large trucks (e.g. coal trucks).
• Spherical:  This is typically reserved for liquids.

For each of these shaped containers, this calculator has formulas for their:
   Rectangular Box Load of Sand

• Total volume:  This is based on their shape and their dimensions.  You will notice that these are often the combination of common shapes (box, cylinder, cone, sphere)
• Total Load Weight:  This is simply the total volume which is a cubic measurement (e.g. cubic feet or meters) times the density of the substance to be transported.  For convenience, vCalc has provided a substantial library of common mean densities of substance ranging from chemicals, minerals, metals, woods, agriculture products, gases, oils, liquids and types of earth.
• Load Weight: This allows the user to compute the load weight when the load is at less than capacity

Calculator Functions

• Conic Cylinder
  • Total Volume (Click HERE)
  • Total Load Weight (Click HERE)
• Capsule (Spherocylinder)
  • Total Volume (Click HERE)
  • Total Load Weight (Click HERE)
  • Partial Load Weight
• Box (Rectangular)
  • Total or Partial Volume (Click HERE) - For the partial volume, simply use the depth of substance in the container instead of the total depth of the container.
  • Total or Partial Load Weight (Click HERE) - For the weight of a partial load, simply use the depth of substance in the container instead of the total depth of the container.
• Spherical
  • Total Volume (Click HERE)

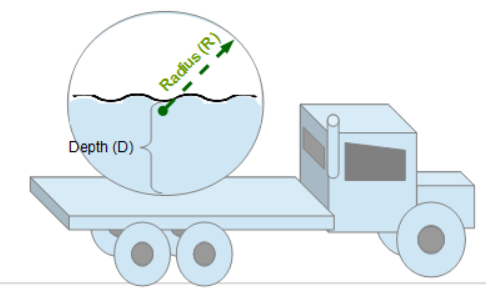

  • Total or Partial Load Weight (Click HERE) - For the total load weight, simply indicated the same value for the measure depth (D) of the substance to equal twice the radius (R) of the container.  (See diagram)

The Mean Density of many substances (metals, mineral, chemicals, gases, woods, agricultural products, liquids and types of earths) can be looked up by CLICKING HERE.

Mean Density

The mean density of a substance is the average mass (weight) of a substance in its most common form and at normal temperatures.  For the purposes of this set of calculators, we will not enter the minutia of physics and chemistry and use the approximate mean densities most frequently observed in the transportation and shipping of common substances.  NOTE: all value of volume and mean density should be verified elsewhere before employing these calculations for anything involving risks to life, limb or material assets.

vCalc provides a simple lookup utility to provide the mean density of hundreds of substances.  We believe this is the most comprehensive list on the Internet today.  To look up the mean density of a substance, you can browse the library at this link (Densities) or simply CLICK HERE  for a pop-up function.  Scroll through the list and find the substance you plan to transport. For example, the mean density of bituminous coal is 793 kg/m³ and the mean density of water is 1,000 kg/m³.

vCalc has adopted two symbols for mean density:

• mD - short for mean Denisty.
• `muD`  - `mu` is the symbol for the Greek letter mu and is often used to indicate the average of something.
