Moment on Two Perpendicular Plates Fillet Weld

The Moment on Two Perpendicular Plates Fillet Weld Calculator finds the stress in a rectangular beam with a bending moment.

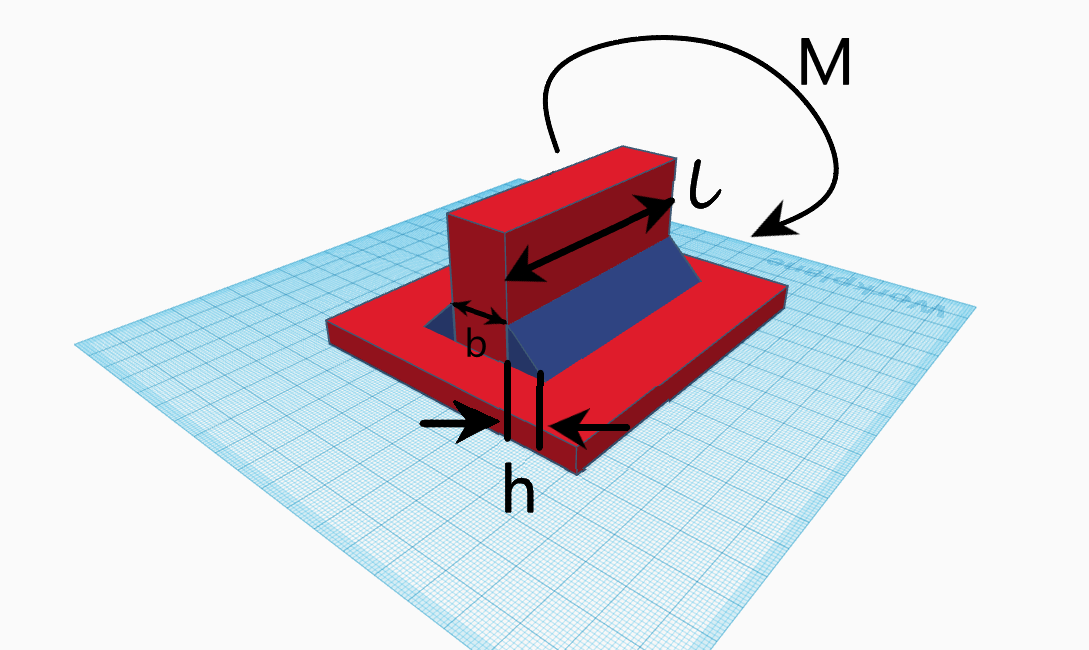

INSTRUCTIONS: Choose units and enter the following:

• (`M`) Bending Moment
• (`h`) Weld Thickness
• (`l`) Length of Weld
• (`b`) Plate Thickness

Stress (`σ`): The calculator returns the answer in psi.  However this can be automatically converted to compatible units via the pull-down menu.

The Math / Science

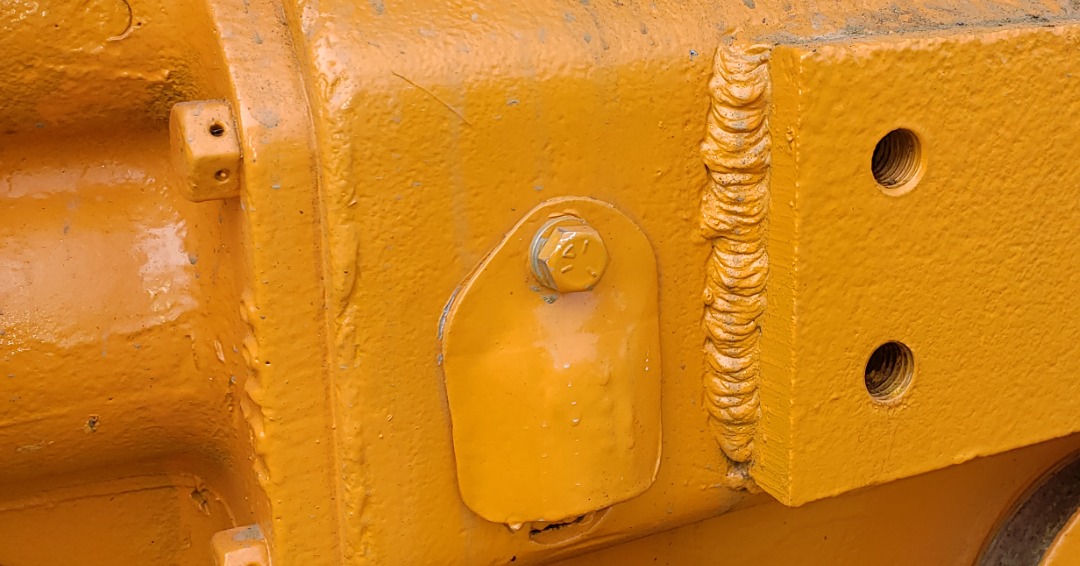

There are five basic types of welded joints: butt, lap, tee, corner and, edge joints.

Butt joints are formed when two plates are butted together. The connection is normally made with a full or partial penetration weld.

Lap joints are made when two members with flat surfaces overlap each other.  The connection is normally made with fillet welds on the edges of the connected parts.

Tee joints have one plate element that "T"'s into another.  The joint can be made with fillet, partial penetration, or full penetration welds.

Corner joints are a type of tee joint. They occur at the edges of two plates.

Edge joints join the edges of two plates laid together. The connection is made with partial penetration welds.

To find the amount of stress, use the formula:

σ = (1.414 ⋅ M) / [ h ⋅ l (b + h) ]

where:

• σ = stress in the weld
• M = bending moment
• l  = length of the weld
• h = thickness of the weld
• b = thickness of the plate
