Continuity Equation (Area)

Last modified by
on
Jul 24, 2020, 6:28:07 PM
Created by
on
Mar 21, 2015, 9:40:17 PM
A1=ρ2A2v2v1ρ1
(A2)Area
(v1)Velocity
(v2)Velocity
(ρ1)Density
(ρ2)Density
Tags
UUID
ddee874a-d012-11e4-a3bb-bc764e2038f2

The Continuity Equation (Area) calculator computes the pipe cross-section area (A1) using the continuity equation based on the initial fluid density and velocity and the final fluid density, velocity and cross-section area.

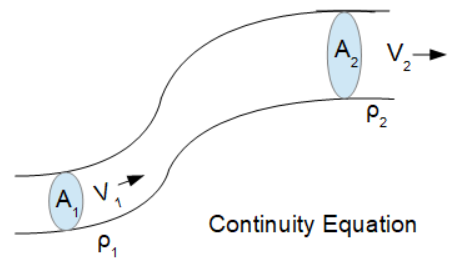

INSTRUCTIONS: Choose units and enter the following:/attachments/ddee874a-d012-11e4-a3bb-bc764e2038f2/ContinuityEq.png

  • (ρ1) This is the initial fluid density
  • (V1) This is the initial fluid velocity
  • (A2) This is the final cross-section area
  • (ρ2) This is the final fluid density
  • (V2) This is the final fluid velocity

Continuity Equation for Area (A1): The calculator returns the area in square meters.  However this can be automatically converted to compatible units via the pull-down menu.

Related Calculators:

The Math / Science

The Continuity Equation states that the product of fluid density (ρ), fluid velocity (V), and cross-section area remains constant in a closed system.  In this way, you can use the Continuity Equation to compute one of the parameters for two places in the system if the remain parameters are known.  Mathematically,  the Continuity Equation is:

    A1 • ρ1 • V1 = A2 • ρ2 • V2

where:

  • A1 is the initial cross-section area
  • ρ1 is the initial fluid density
  • V1 is the initial fluid velocity
  • A2 is the final cross-section area
  • ρ2 is the final fluid density
  • V2 is the final fluid velocity

Reference

Young, Hugh and Freeman, Roger.  University Physics With Modern Physics.  Addison-Wesley, 2008. 12th Edition, (ISBN-13: 978-0321500625 ISBN-10: 0321500628 ) Pg 467, eq 14.12
