The Foundation Sill Plates calculator computes length of Sill Plate boards needed to be bolted to the top of the foundation.
INSTRUCTIONS: Choose units and enter the following:
- (W) Foundation Width
- (L) Foundation Length
- (T) Foundation Thickness
Foundation Sill Plates (TL): The total length of board needed is returned in feet. However, this can be automatically converted to compatible units via the pull-down menu.
The Math / Science
The Foundation Sill Plates equation computes the length of boards needed on top of the foundation, bolted to the foundation, to serve as the connection between the foundation and the frame of the building. Sill plates are usually 2 by lumber (e.g., 2x8s). The foundation will have lag bolts poured into the foundation. Holes are drilled for the bolts to come up through the sill plates, which are then attached to the foundation with washer and nut.

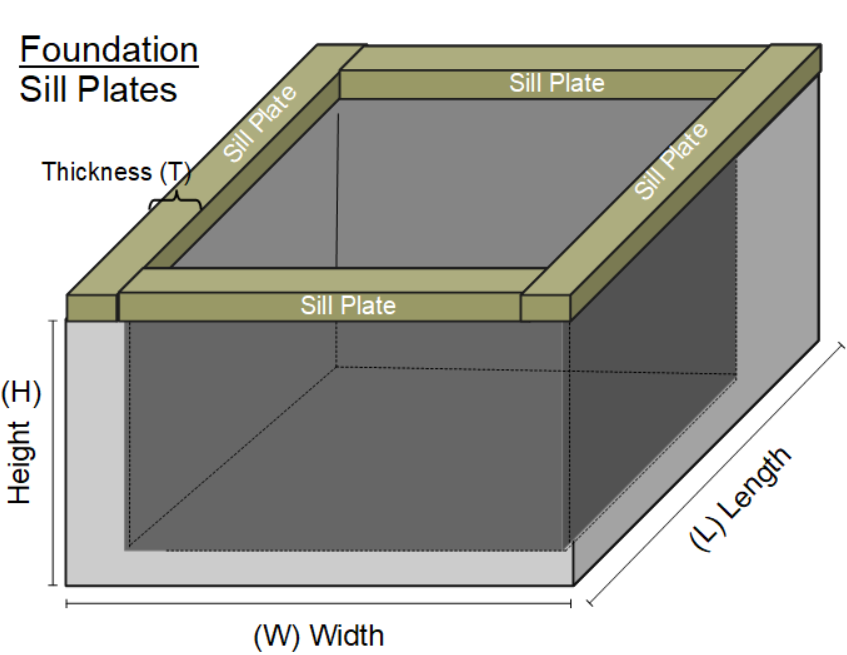

The formula for the length of sill plates is:
`TL = 2*L + 2*(W-T)`
where:
- TL = Total Length of Sill Plate boards
- W = Foundation Width
- L = Foundation Length
- T = Width of Foundation Walls (thickness)
