The Joists on a Beam calculator

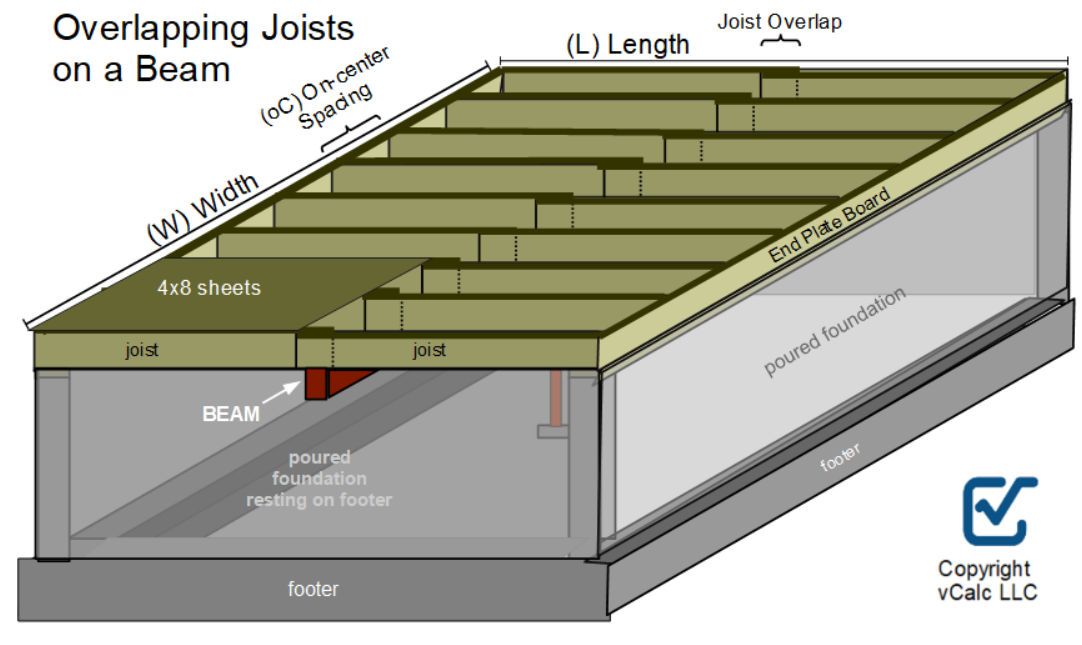

computes the number of joists (joists and end plates) required for a floor or deck based on the dimension of the room or deck and the on-center joist separation and length of joists being employed. It also indicates the number of beams required to have an overlap of joists above the beams.

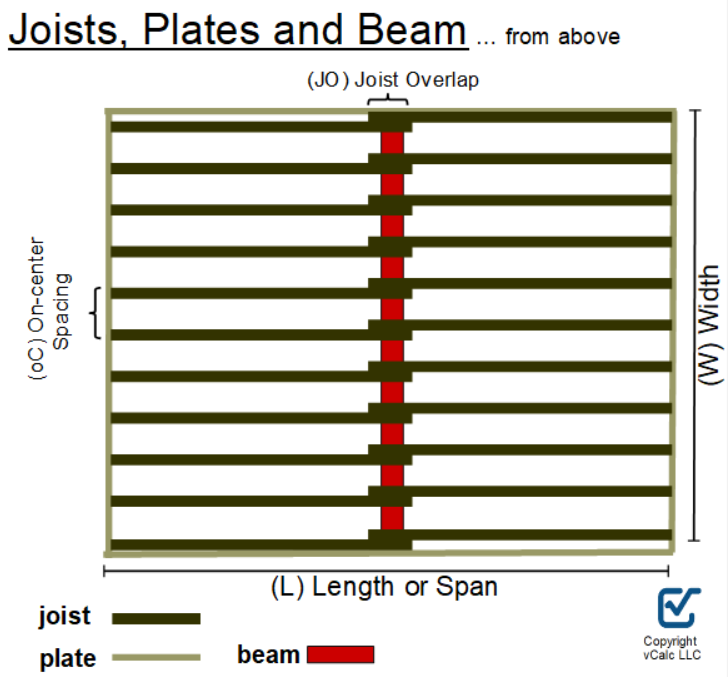

INSTRUCTIONS: Choose units and enter the following:
- (W) Width of Floor (across joists)
- (L) Length or Span of Floor (parallel to joists)
- (oC) On-center Separation distance between joists
- (JL) Joist Length
- (JO) Joist Overlap (default: 10")
- (PB) Plate Board Length
Floor Joists on Beams Board Count (JC): The calculator returns the number of joists and end plates, their lengths, the number of beams, their lengths and their spacing to be centered. The calculator also returns the number of joist hangers (ties) needed.
- (nJR) Number of Joist Rows
- (nBM) Number of Beams needed
- (BSpac) Beam Spacing
- (TJB) Total Number of Joist Boards
- (nJH) Number of Joist Hangers needed
- (nP) Number of Plate boards for Perimeter
The Math / Science
The Joists on Beams calculator ...
- computes the number of rows of joist along the floor / deck width,
- computes the number of beams, if any, that are required, to match the span of the length based on the length of joists specified,
- computes the number of joist hangers needed, and
- computes the number of plate boards to completely belt the floor / deck. This includes plate board that run along beside the first and last joist and the plates that meet the start and end of each joist.
Menards carries I-joists up to 40' as of this writing . It takes the width and calculates the number of joists needed to meet the on-center spacing requirement, and includes one for the beginning and an extra for any partial space. The algorithm then calculates the number of end pieces (plates) needed based on the width and the joist lengths.
It is important to note, that the strength of the joist and its length are driven by the use of the floor. A free standing outside deck for some light furniture and a few people will have a different load requirement than a deck for a hot tub. For this reason, this calculator does not tell you what boards or I-joists to be used, just how many. The most common driving factor in joist selection is the Live Load which is the specification for the load (weight) that is placed on a square foot of the floor. Local building codes also dictate what joist boards can be used. The live load will most commonly drive the Maximum Joist Span.
AS ALWAYS, CONFORM TO LOCAL BUILIDING CODES AND CONSULT PROFESSIONAL ENGINERING SPECIFICATIONS FOR ALL CONSTRUCTION AND DO NOT RELY SOLELY ON THESE CALCULATIONS. CONFIRM THEM WITH AUTHORITATIVE SOURCES!
