`m = "rise"/"run"`
0.3333
The Pitch to Slope calculator returns the slope based on a chosen pitch.
INSTRUCTIONS: Enter the following:
- (P) Choose a Pitch
Slope (m): The calculator returns the slope associated with the pitch.
The Math / Science

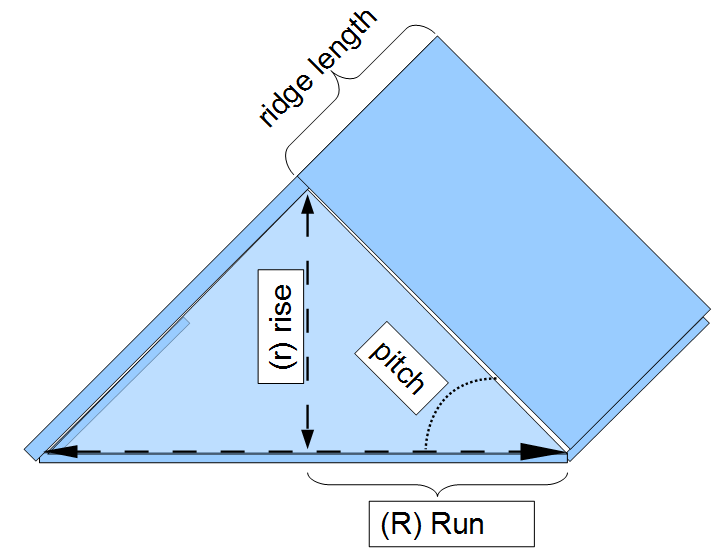

The formula for the slope based on the pitch is:
m = rise / run
where
- m = slope
- rise = vertical measurement
- run = horizontal measurement
