Rock Climbing Fall Factor

Last modified by
on
May 4, 2022, 9:15:10 PM
Created by
on
Nov 29, 2013, 8:40:58 PM
Fall Factor=fL
Distance to Last Anchor
Length of Rope out
Tags
UUID
8d431e36-5936-11e3-9569-bc764e049c3d

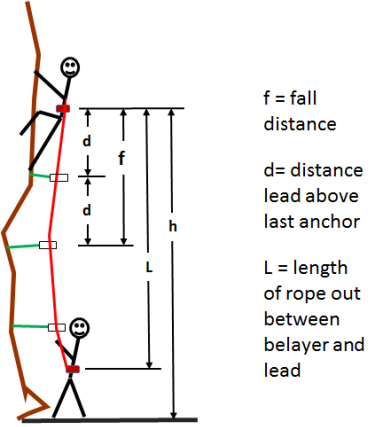

This Rock Climbing Fall Factor equation computes the Fall Factor, /attachments/8d431e36-5936-11e3-9569-bc764e049c3d/RockClimbingFallFactor-illustration.pnga unit of measure used in the testing of modern rock climbing ropes.

The inputs are d and L:

  • d = the distance the climber is above the last piece of protection and thus the half the distance of a potential fall, f.
  • L = the length of rope between the belay point and the climber

The fall factor is a unit-less and relative measure of the severity of a fall, the force it generates, and the potential damage that could be inflicted on the rope by the forces of a fall.


This equation, Rock Climbing Fall Factor, is used in 1 page
