The Roof Coating Calculator computes the number of pails (5 gal) needed to coat a flat roof.
INSTRUCTIONS: Choose units and enter the following:

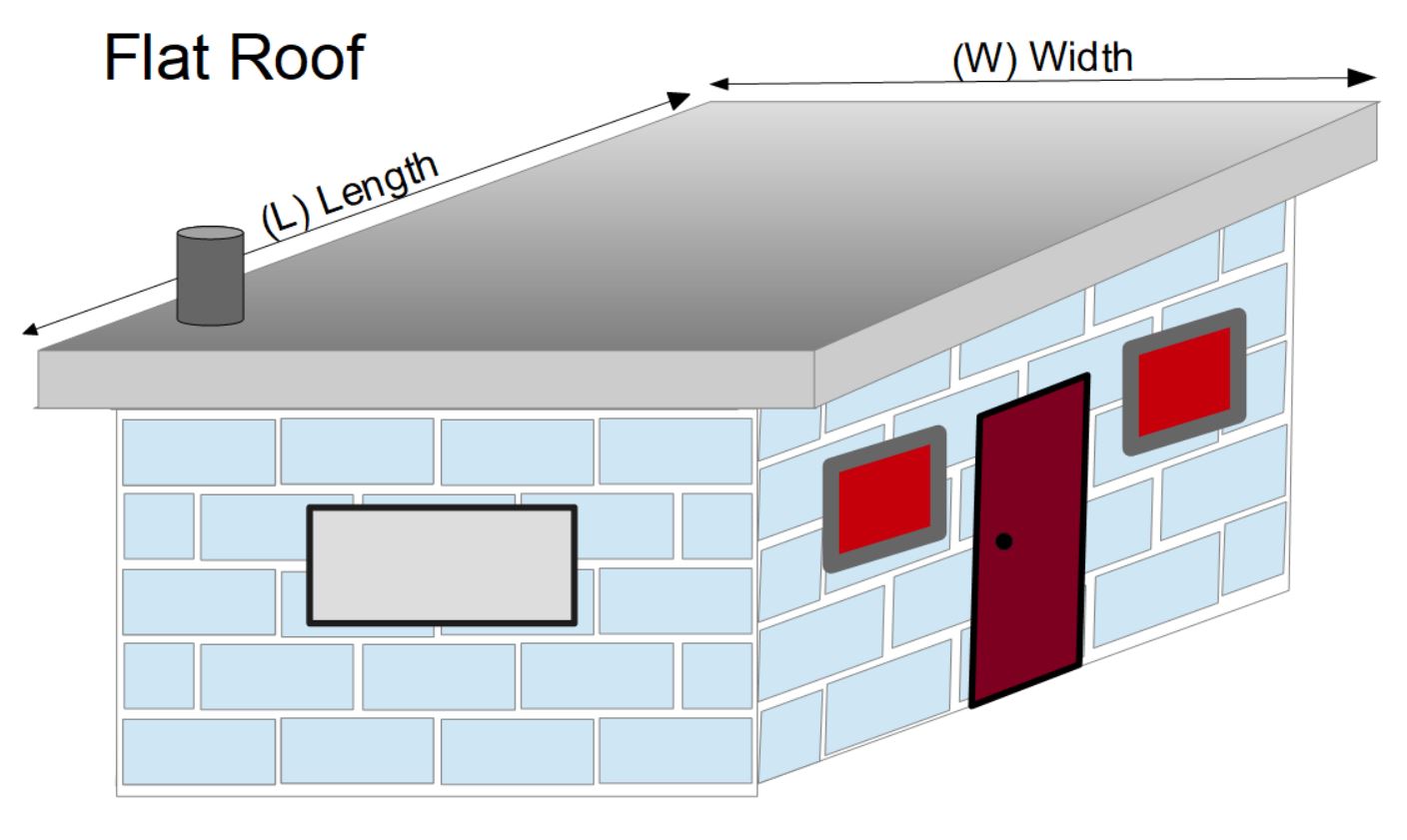

- (W) Width of Flat Roof
- (L) Length of Flat Roof
Pails of Coating (P): The calculator returns the number of pails of roof coating needed. It also returns the square feet of the roof surface. However, this can be automatically converted to compatible units via the pull-down menu.
The Math / Science

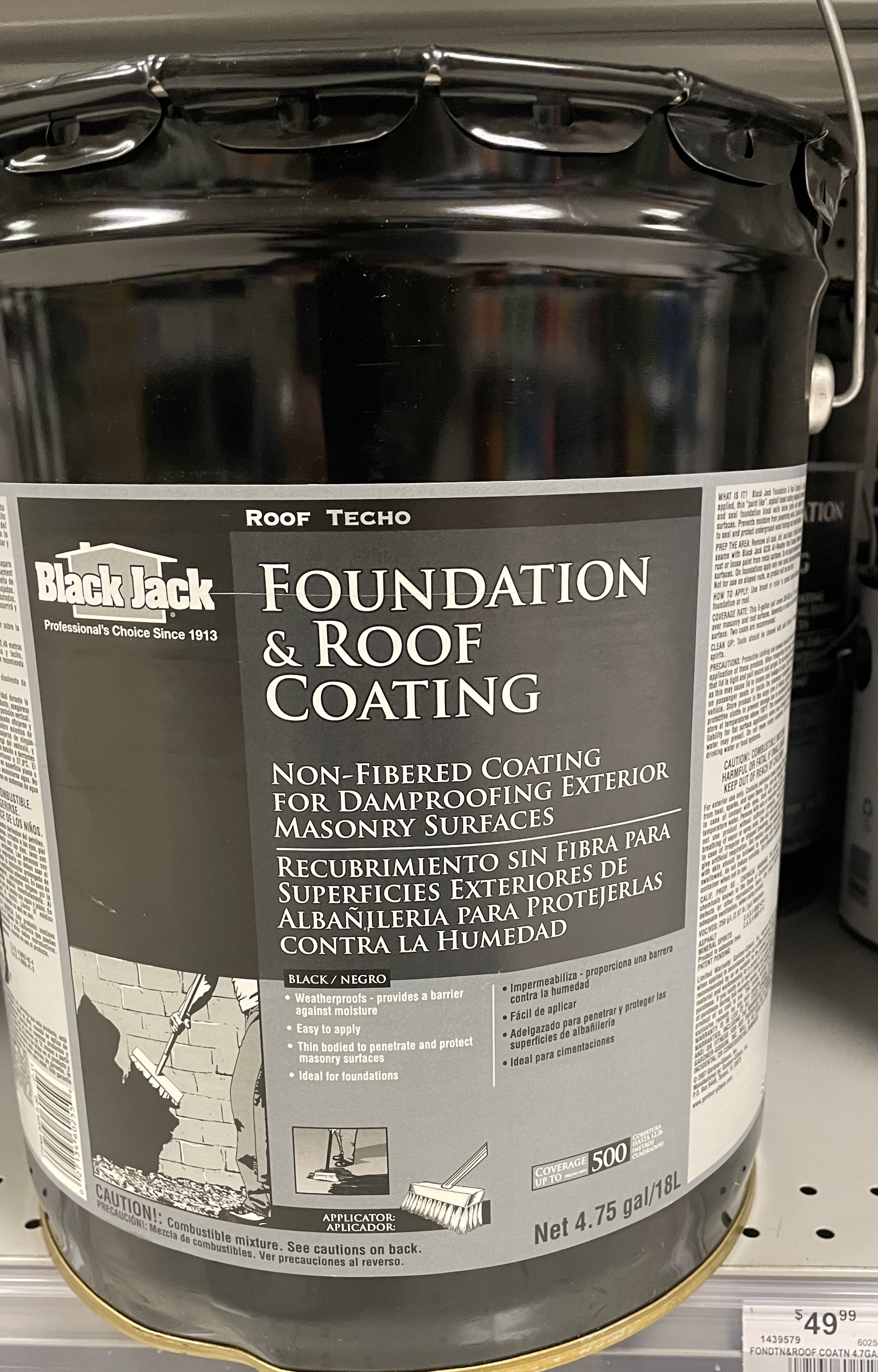

The surface area of a roof is measurable. Pails of coating (as pictured) specify the number of square feet they will cover. The product shown lists a range of 350 ft2 to 500 ft2 for one 5 gallon pail over masonry and roof surfaces. The Roof Coating calculator computes the surface area based on the width and length and divides the surface area by the high an low range to give the user an idea of how many pails of sealer that will be needed for the job.
The formula for Roof Coating is:
`P = (L*W) / (PC)`
where:
- P = Number of 5 gallon pails needed coat a roof
- L = Length of Flat Roof
- W = Width of Flat Roof
- PC = Pail coverage (low: 350 ft2 per pail. high: 500 ft2 per pail)
The Coating Calculator has functions to compute the amounts of coating
substance applied to a surface to protect, enhance, or provide specific properties. More than just paint, coatings can offer additional functionalities such as corrosion resistance, waterproofing, anti-fouling, thermal insulation, or electrical conductivity.
- Coating for a Foundation Wall: Computes the number of pails (5 gal) needed to coat a foundation wall based on the length and height.
- Concrete and Masonry Water-proofing: Computes the number of cans (1 gal) of concrete and masonry water-proofer needed to cover an area based on the width and height and number of coats.
- Corrugated Metal Panel Paint or Coating Volume: Computes the amount of paint or other coating (e.g., spray insulation) on an area of corrugated panels.
- Driveway Coating: Computes the number of pails (4.75 gal) needed to coat or seal a driveway. It provides a minimum and maximum number of pails and the surface area in square feet, all based on the length and width of the driveway.

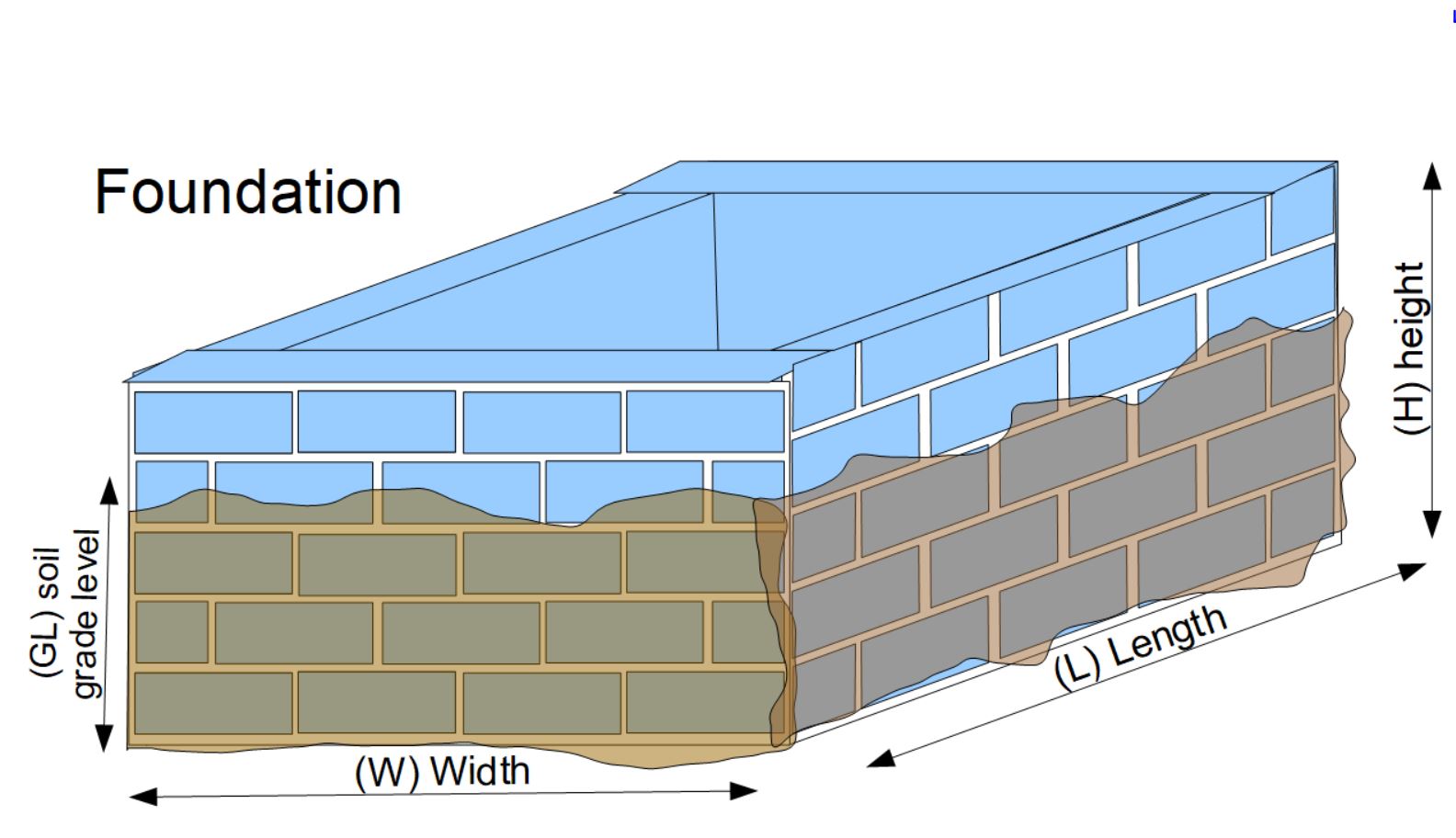

- Foundation Coating: Computes the number of pails (5 gal) needed to coat all four walls of a foundation. It provides a minimum and maximum number of pails and the surface area of the foundation below grade in square feet, all based on the length, width and height of foundation below grade.
- Pipe Coating Amount: Computes the amount of coating material for the exterior surface area of a pipe based on the pipe diameter, length and the thickness of the coating.
- Roof Coating: Computes the number of pails (e.g., 5 gal) needed to coat a flat roof.
