The Automotive Geometry Calculator contains     Camber Angle, Offset and Drop  geometry formulas related to the Camber angle, Ground Clearance and Approach/Departure Angle.

Instructions

The formulas in this calculator compute the following:

1. Camber Angle - This formula uses the Camber Offset (o) and the height (h) of the tire to compute the Camber Angle (Φ).
2. Camber Offset- This formula uses the Camber Angle (Φ) and the height (h) of the tire to compute the Camber Offset (o).   Approach and Departure Angles
3. Camber Ground Clearance Reduction- This formula uses the Camber Angle and tire height to compute the reduction in ground clearance a.k.a. camber drop.
4. Approach or Departure Angle- This formula computes the maximum approach angel (α) that a vehicle can climb without impact to the undercarriage based on specific measurements.

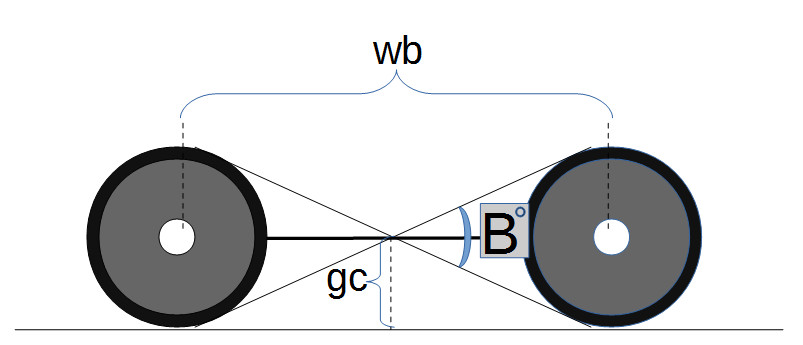

5. Breakover Angle- This formula computes the breakover angle (B°) based on the wheelbase (wb) and the ground clearance (gc) (see diagram)                                    Breakover Angle
