Electrostatic Pressure in Dielectric Elastomers

Last modified by
on
Jul 24, 2020, 6:28:07 PM
Created by
on
Apr 16, 2017, 9:11:08 PM
p(eq)=ε0ep[Choice](V2r2)
Voltage between electrodes
Choice of Dielectric
Electrode separation

This equation computes the equivalent mechanical pressure generated by electrostatic pressure created when a electroactive polymer has a voltage applied across it.

Dielectric elastomers (DEs) are smart materials that can produce large strains. They belong to the group of electroactive polymers (EAP). Actuators created from EAPs -- DE actuators (DEA) --  transform electric energy into mechanical work. They are lightweight and have a high elastic energy density. See the image below  (from https://en.wikipedia.org/wiki/Dielectric_elastomers)

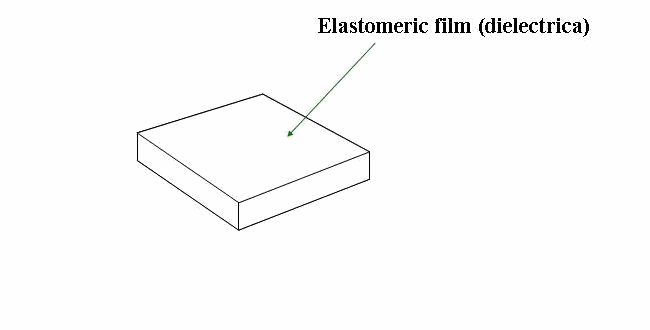

Dielectric Elastomers (Gif by Wikipedia page for Dielectric_elastomers)


This equation, Electrostatic Pressure in Dielectric Elastomers, references 2 pages
