$dB_"from peak main beam" = 10*log_"10"(|2* (J_1( "X" ))/ "X" |^2)$

$"Angle from Peak"$

Tags

UUID

59f9ce3f-f3a0-11e4-a3bb-bc764e2038f2

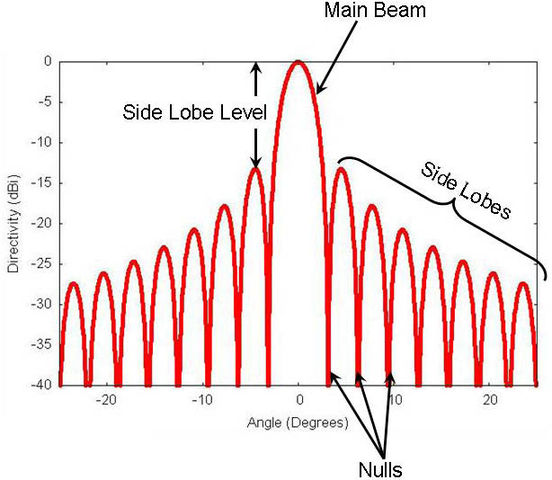

This vCalc antenna equation computes the radiation directivity of a circular antenna at various angles from the peak of the main beam. /attachments/59f9ce3f-f3a0-11e4-a3bb-bc764e2038f2/552px-Typical_Antenna_Pattern.jpg This equation assumes the antenna has a uniform amplitude distribution and is calculated from the zero-order Bessel Function of the first kind ( $J_1(X)$ ).

The units dBi is the decibels relative to an isotropic antenna.

Examples

The peak of the first lobe of a circular antenna calculated here is at $X approx 5.14$ and it's directed power is approximately -17.57 dB.
