This equation computes the Power Factor, `cos(phi)`.

The Power Factor is defined as the ration of the active component of the current `I_R` to the total current, I.

The inputs to this equation are: `I_R` and `I`

Notes

The instantaneous electric power in an AC circuit is given by `P = V*I`. These quantities, V and I, are continuously varying. The average power in an AC circuit is given by `P_"avg" = V*I*cos(phi)`, where

`phi` = is the phase angle between the current and the voltage

In alternating current circuits, the current can be represented by two components:
 the active component `I_R`, in phase with the supply voltage, V, the active component of the current is directly correlated to the electrical energy output. This is the energy converted to heat or light or mechanical energy.
 the reactive component IQ, which in quadrature to the voltage (separated by 90 degrees in phase), produces the flow of current.

In the presence of ohmic-inductive loads, the total current, I, lags the active component `I_R`.

The Power Factor (cos`phi`) is defined as the ratio between the active component `I_R`.
 and the total value of the current l.

The angle `phi` is the phase difference between the voltage, V, and the current, l, so that `cos(phi) = I_R/I = P/S`

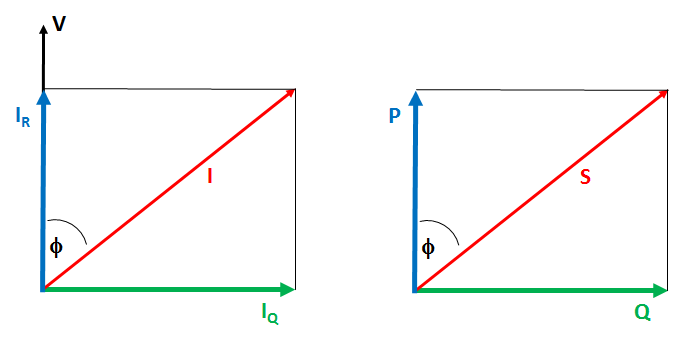

In the diagram, the active power is P and the  reactive power is Q.The apparent power is S.
