Shear Strain

vCalc Reviewed
Last modified by
on
Jul 24, 2020, 6:28:07 PM
Created by
on
Feb 17, 2015, 10:52:44 PM
γ(Shear)=xh
(x)Displacement
(h)Transverse Dimension
Tags
Mechanics of Materials Strain stress Shear Strain  Verified
UUID
afa3ee35-b6f7-11e4-a9fb-bc764e2038f2

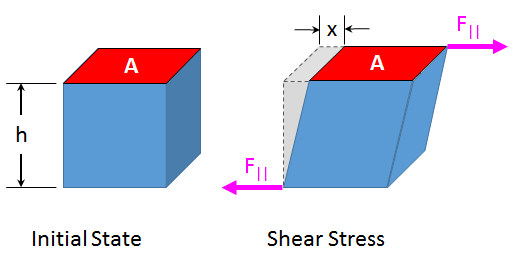

The vCalc Shear Strain equation computes the strain caused by a displacement of a surface of a volume as shown in the image.  In the image surface A is displaced by a distance x.

The shear strain, γresults from the stress caused by the force F||.

original author: Billy

Inputs/attachments/afa3ee35-b6f7-11e4-a9fb-bc764e2038f2/Shear Stress.png

The strain is computed as the ratio of the following:

  • x - the displacement of the surface A.
  • h - the original  transverse (perpendicular to the force, F||) length of the object under stress.

Reference

Young, Hugh and Freeman, Roger.  University Physics With Modern Physics.  Addison-Wesley, 2008. 12th Edition, (ISBN-13: 978-0321500625 ISBN-10: 0321500628 ) Pg 367, eq 11.16
