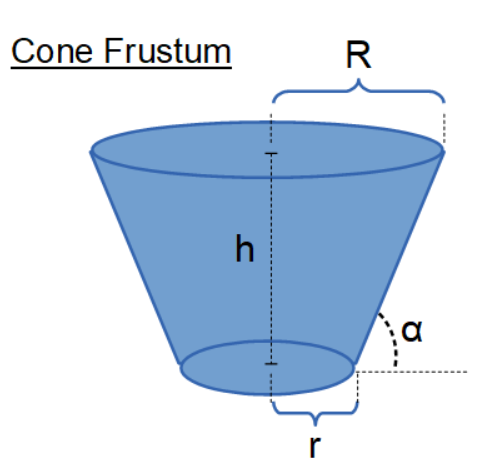

The Cone Frustum Height from Volume calculator computes the height of a frustum (slice) of a cone based
on the bottom radius and volume of the frustum and the angle of the side.
INSTRUCTION: Choose units and enter the following:
- (α) Side Angle
- (r) Radius of Bottom
- (V) Volume of Frustum
Height of Cone Section (h): The calculator computes the height (h) and top radius (R) in centimeters (cm). However these can be automatically converted to compatible units via the pull-down menu.
The Math
The frustum is the difference of two cones where:
- the smaller cone has radius 'r' and height 'a'
- the larger cone has radius 'R' and height 'A'
and we are seeking h=A-a.
The larger cone has volume (PI/3)*A*R*R; the smaller was volume (PI/3)*a*r*r. We are given the frustum volume (V) which is the difference of the two. We are also given the angle alpha, thus we know:
- a = r * tan(alpha)
- A = R * tan(alpha)
Since we know 'r', thus we know 'a'. We can just re-write:
`V = (PI*tan(alpha)/3)*(R^3-r*r*r)
thus we can express 'R' in terms of things we know and we know 'A' is just R * tan(alpha).
The closed form for 'R' is a bit messy:
R = cube root(3*V*cot(alpha)/PI + r*r*r)
