Ellipse Vertical Chord from Center

Processing...

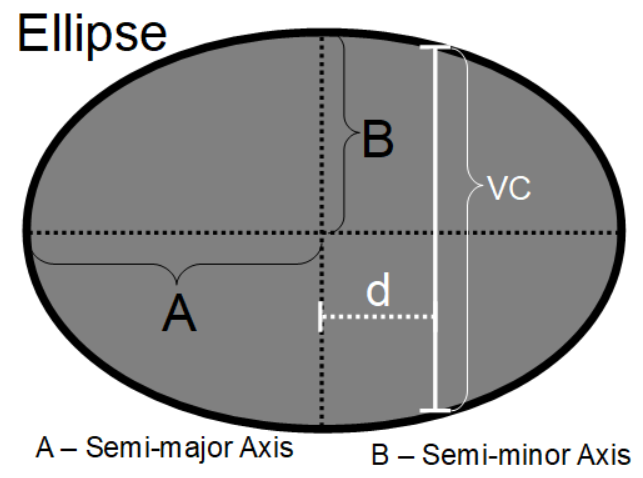

The Ellipse Vertical Chord from Center calculator computes the chord of an ellipse where the chord is vertical at a distance from the semi-minor axis.

INSTRUCTIONS: Choose units and enter the following:

(A) Semi-Major Axis
(B) Semi-Minor Axis
(d) Distance from Minor Axis

Ellipse Vertical Chord from Center (VC): The results are returned in centimeters. However, these can be automatically converted to compatible units via the pull-down menu.

The Math / Science

The Ellipse Vertical Chord from Center equation computes the length of the vertical chord in an ellipse that is a distance from the semi-minor axis.

`VC = 2*(B/A) * sqrt(A*A-d*d)`

where:

VC = length of vertical chord
A = length of semi-major axis
B = length of semi-minor axis
d = distance from the semi-minor axis.
