The Groove Weld Potential Root Cracking Calculator finds the whether or not the groove weld has a potential for root cracking based on the width-to-depth ratio (1.0-1.4).

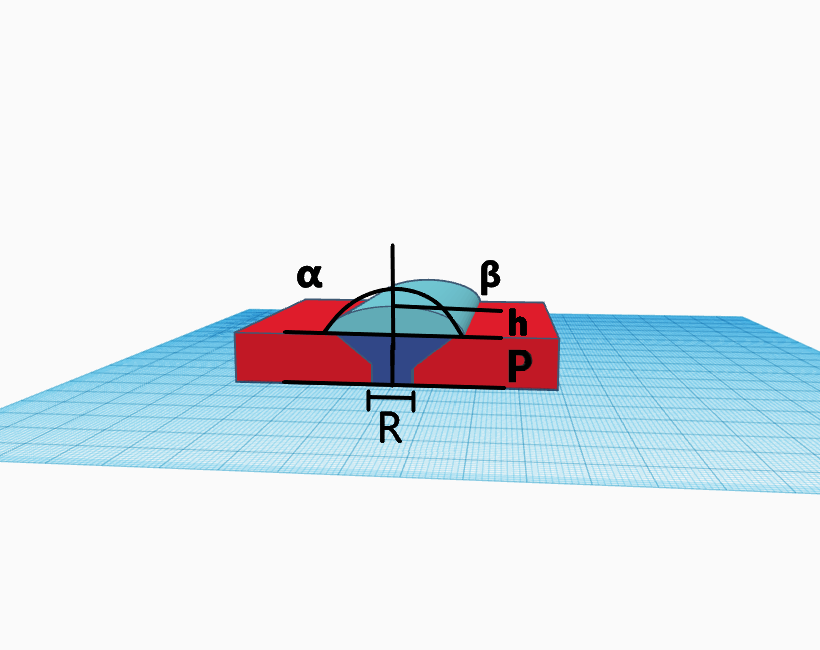

INSTRUCTIONS: Choose units and enter the following:
- (R) Root Opening
- (α) Bevel Angle No. 1
- (β) Bevel Angle No. 2
- (P) Penetration Depth
- (h) Bead Height
Groove Weld Potential Root Cracking Ratio: The calculator returns the answer as a decimal.
The Math / Science
The recommended width-to-depth ratio for any combination of V-groove or beveled groove welds ranges from 1.0 to 1.4. Any decimal within this range typically prevents groove weld root cracking. It is important to note that proper root geometry does not ensure complete fusion of the metals or the absence of slag inclusions.
To find the groove weld root cracking potential ratio, use the formula:
`W / d = (R + h (tanα + tanβ)) / (h + P)`
where:
- W/d = bead width to bead depth ratio
- R = root opening
- α = bevel angle no. 1
- β = bevel angle no. 2
- P = penetration depth
- h = bead height
Example: A double V-groove weld detail has an included angle of 32 degrees and a root face dimension of 1/4 inch. To complete the design, a complete joint penetration (CJP) groove weld is to be made without backgouging. Will this result in a preferred width-to-depth ratio? Is there a potential for root cracking? Assume a penetration depth of 3/16 inch, a bead height of 1/2 inch, and a zero inch root opening.
Preferred width-to-depth ratio: W/d = 1.0-1.4
W/d = (R + h (tanα + tanβ)) / (h + P)
W/d = (0" + 0.5" (tan16° + tan16°)) / (0.5" + 0.1875")
Fractions have been changed to decimals and the included angle of 32° has been halved for the two separate bevel angles.
W/d = 0.2867 / 0.6875
W/d = 0.4171
This ratio (0.4171) is much less than the preferred ratio of 1.0-1.4, thus raising the potential of centerline cracking.
