The Rifle Sight Correction Angles calculator computes the Minutes of Angle
corrections based on the range to the target (R) and the horizontal and vertical errors at the target.
INSTRUCTIONS: Choose units and enter the following:
- (R) Range (distance) to Target

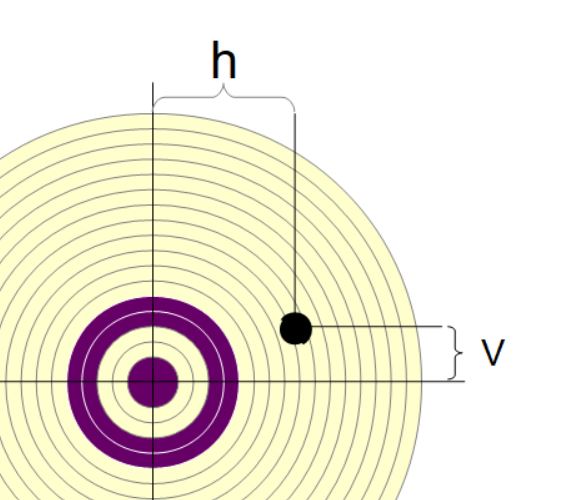

- (h) Horizontal Offset (positive to the right of center and negative to the left of center)
- (v) Vertical Offset (positive above center and negative below center)
Rifle Sight Correction Angles (α, β): The calculator returns the vertical correction angle (α) and horizontal correction angle (β) in minutes of angle (MoA). However, this can be automatically converted to compatible units via the pull-down menu.
The Math / Science
The horizontal and vertical dials on rifle sites are typically in Minutes of Angle. A minute of angle is 1/60th of a degree angle. The calculator converts the correction angles to that unit (minute of angle). The effect of a small error in the angle of a sight will increase with range.
The formula for the rifle sight correction angles are:
α = atan(v/R)
β = atan(h/R)
where:
- α = vertical correction angle
- β = horizontal correction angle
- R = range to target
- v = vertical offset
- h = horizontal offset
Standard Zero Ranges
There are standard ranges commonly used for siting (or "zeroing") a rifle, depending on the intended use and the type of shooting being done. The process ensures that the rifle's point of aim (where you aim through the sights or optic) aligns with the point of impact (where the bullet strikes the target).
Common Standard Zero Ranges:
- 50 Yards/50 Meters:
- Often used as a general-purpose zero for AR-15s and other rifles.
- Benefits: With a 50-yard zero, the trajectory will be relatively flat out to 200 yards, making it versatile for close to medium-range engagements.
- Common for defensive or tactical shooting.
- 100 Yards/100 Meters:
- This is the most popular zero range for hunting rifles and precision shooting.
- Benefits: At 100 yards, the bullet drop and trajectory are easy to calculate, and most ballistics charts are calibrated for this distance.
- Ideal for general hunting scenarios.
- 200 Yards/200 Meters:
- Preferred for shooters who engage targets at longer ranges.
- Benefits: With a 200-yard zero, the bullet is slightly high at 100 yards but drops back to zero at 200 yards, making it a good option for long-range hunting or competition shooting.
- 25 Yards:
- A close-range zero often used for initial zeroing to get "on paper" before adjusting for longer distances.
- For some rifles, a 25-yard zero aligns with a 300-yard trajectory, particularly with certain military calibers like the 5.56 NATO round.
- 36 Yards:
- Used by some shooters as an alternative for the AR-15 platform.
- Benefits: A 36-yard zero aligns closely with the point of impact at 300 yards with minimal holdover adjustments.
- 300 Yards or More:
- Long-range zeroing for precision rifles, particularly in long-range shooting sports or military applications.
- Requires precise optics and detailed ballistic calculations, as the bullet drop becomes significant at these ranges.
Choosing the Right Zero:
Hunting: 100 or 200 yards.
- Home Defense/Close-Range Shooting: 50 yards or even closer, depending on the environment.
- Tactical/General Use: 50 yards or 200 yards (common for military and law enforcement).
- Long-Range Shooting: 200 yards or greater, depending on the expected engagement range.
Ultimately, the best range for siting a rifle depends on the rifle's caliber, the shooter’s intended purpose, and the distances at which the shooter expects to engage targets. 50-yard and 100-yard zeroes are considered the most versatile starting points.
