Wire Fence Materials

The Tension Wire Fencing Materials  calculator computes the length of wire, number of posts and end components needed for a high tension fence based on the length of the fencing perimeter, number of strands of wire and spacing between posts.

INSTRUCTIONS: Choose units and enter the following:

• (P) Fence Perimeter
• (PS) Post Spacing
• (NW) Number of Strands

Wire Fence Materials: The calculator returns:

1. (TL) Total Length of Wire in feet. However, this can be automatically converted to compatible units via the pull-down menu.
2. (nP) Number of Posts

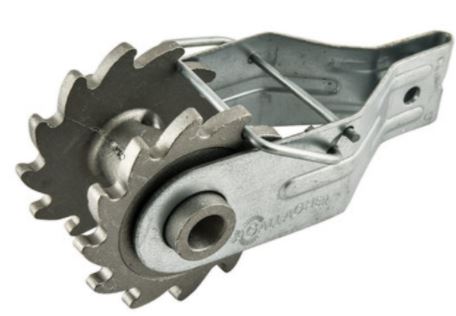

3. (nWS) Number of Wire Strainers
4. (nBS) Number of Barbed Staples


Wire Fence End Posts and Corners

A wire fence is put under tension for the wires to serve as a barrier for the animals, to keep them in or out.  That tension will cause a strain on your end posts and corners, and will inevitably bend them over if not supported properly.  For this reason, you will see end posts and corners with a cross bar (C in the diagram) and a diagonal cable (d in diagram).  This keeps posts A and B from slowly tilting to the right  Without support, post A wants to lean toward B, driving B to the right too.  But the diagonal cable (d) keeps that from happening by putting the tension back at the base of A, which won't move.  It's too close to the ground.  Places like Tractor Supply or Southern States sell heavy duty cables with loop ends that are easy and strong when used as diagonal cables.  A long fencing wire drawn in two figure 8's with ends properly crimped  together can also serve as a diagonal.  In either case, install the diagonal and cross post before tension is place on the fencing lines.  Make the diagonal reasonably taunt, and then tighten the fencing lines.  Corners can have this configuration going in multiple directions.
