The Junction Rule

Last modified by
on
Jun 14, 2022, 10:41:21 PM
Created by
on
Jun 24, 2016, 1:14:58 PM
Itotal=ΔV(1R1+1R2)
(ΔV)Change in voltage
(R1)Resistance one
(R2)Resistance two
Tags
Light and Matter Electric Current Voltage Resistance Ohm's Law LM21
UUID
a6845237-3a0d-11e6-9770-bc764e2038f2

The Junction Rule is found using the following formula:

Itotal=ΔV(1R1+1R2), where:

  • ΔV = Change in voltage
  • R1 = Resistance one
  • R2 = Resistance two

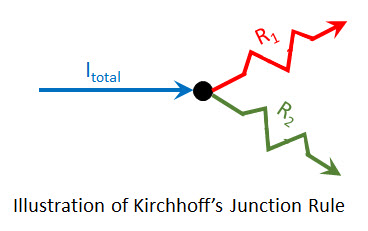

/attachments/a6845237-3a0d-11e6-9770-bc764e2038f2/Junction Rule.jpg

References

21.8 Series and parallel circuits by Benjamin Crowell, Light and Matter  licensed under the Creative Commons Attribution-ShareAlike license.
This equation, The Junction Rule, is used in 2 pages
