The Horizontal Position at Time (t) calculator computes the horizontal (x component) position based on an initial velocity, launch angle, and a specified time.

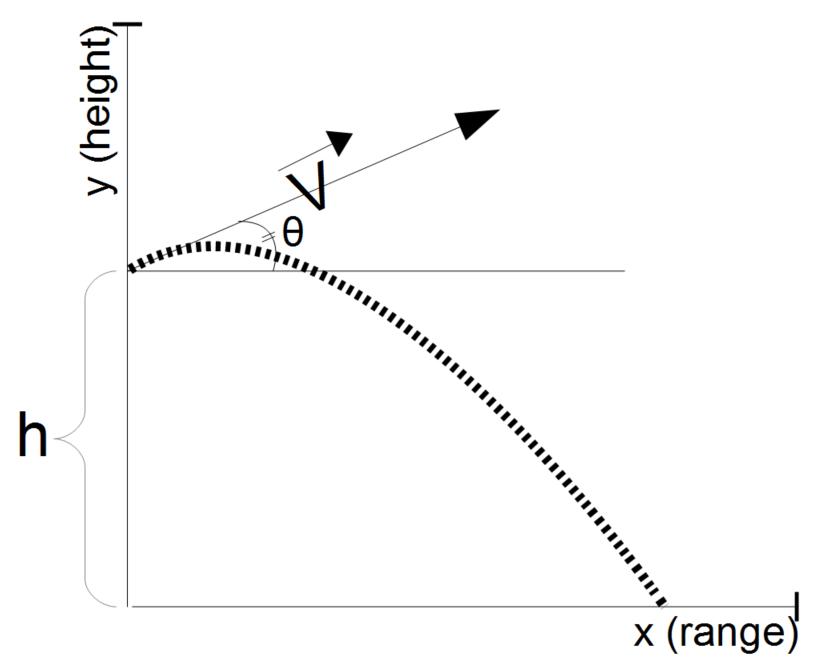

INSTRUCTIONS: Choose units and enter the following:
- (V0) Magnitude of Initial Velocity
- (Θ) Launch Angle
- (h) Initial Height above the Plane
- (t) Time into the ballistic flight.
Position (x,y): The calculator returns the relative X and Y position in meters. However this can be automatically converted to compatible units via the pull-down menu. The calculator also returns:
- (MxH) Max Altitude
- (MxR) Max Range
- (FT) Time of Flight
The Math / Science
The Ballistic Horizontal Position equation calculates an object's position in the x direction, the horizontal component of its ballistic trajectory. This is the equation for the ideal projectile, which means it neglects external forces such as air resistance. Since in the ideal projectile motion model the force of gravity is the only force component affecting the trajectory, and the force of gravity is parallel to the y-component of motion, the gravitational acceleration has no affect the ballistic x-velocity. The x-component of position changes based on the time and the horizontal velocity. The formula for the horizontal position is:
where:
- x is the horizontal position
- V0 is the initial velocity
- θ is the launch angle
- t is the time into the flight
