Cable and Conduit Calc

The Cable and Conduit Calculator contains functions and data for installing Conduits and Cable.

Electrical Metallic Tubing (EMT) Calculators

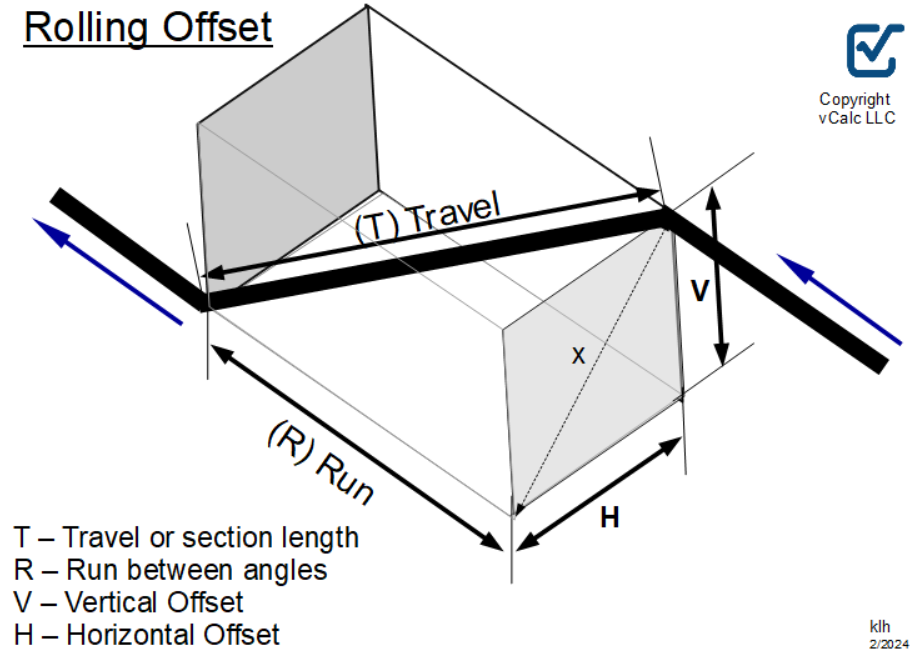

• Rolling Offset (run and Travel): This computes the travel length of pipe or conduit between two angle fixtures and the linear advancement (run) in a rolling offset.
• EMT Conduit Installation Time: This estimates the amount of time needed to install Electrical Metallic Tubing (EMT Conduit) based on the length of the conduit, the Level of Difficulty and the size of the conduit.
• EMT Conduit Length: This estimates the length of Electrical Metallic Tubing (EMT Conduit) that can be installed based on the Level of Difficulty, the size of the conduit and the amount of time allocated.
• EMT Conduit Weight: This estimates the total weight of Electrical Metallic Tubing (EMT Conduit) based on the size of the conduit (S) and the length (L).

Galvanized Rigid Conduit (GRC) Calculators

• GRC Conduit Installation Time: Computes the Estimated Install Time for GRC (Galvanized Rigid Conduit)  based on the GRC size, length of conduit and level of difficulty.
• GRC Conduit Installation Length: Computes the Length of GRC (Galvanized Rigid Conduit) installed based on an installation time period and level of difficulty.
• GRC Conduit Weight: Compute the weight of GRC conduit based on size and length.
• Rolling Offset: Computes the run and travel distances in a rolling offset.

PVC Schedule 40 Conduit Calculators:

• PVC 40 Conduit Installation Time: Computes the Estimated Install Time for PVC Schedule 40 conduit based on the conduit size, length of conduit and level of difficulty.
• PVC 40 Conduit Installation Length: Computes the Length of PVC Schedule 40 conduit installed based on an installation time period and level of difficulty.
• PVC 40 Conduit Weight: Compute the weight of PVC Schedule 40 conduit or pipe based on size, length and whether it's PVC or CPVC.
• Rolling Offset: Computes the run and travel lengths in a rolling offset

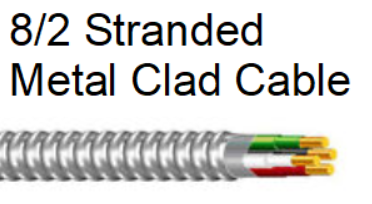

MC Cable Calculators

The Metal Clad Cable (MC) calculator has functions to estimate the installation time and total weight based on size of the

• MC Cable Installation Time: Computes the Estimated Install Time for Metal Clad (MC) cable. based on the MC Cable size, length of cable and level of difficulty.
• MC Cable Installation Length: Computes the Length of Metal Clad (MC) cable installed based on an installation time period and level of difficulty.
• MC Cable Weight: Compute the weight of Metal Clad Cable based on size and length.
• Rolling Offset: Computes the run and travel of a rolling offset configuration.
