Studs for a Room

Processing...

The Studs for a Room calculator computes the number of stud boards required to frame a room based on the length of the four walls. Note: the stud count includes the extra studs at the corners where the walls meet. These extra studs are use to create solid interior corners for drywall or other wall coverings.

INSTRUCTIONS: Choose units and enter the following:

(L) Length of Room
(W) Width of Room
(oC) on-center Spacing of Studs (16" default)

Studs for a Room (S): The number of studs required are computed. Note, this number does not include the base nor top plates since longer boards are typically used for those.

The Math/Science

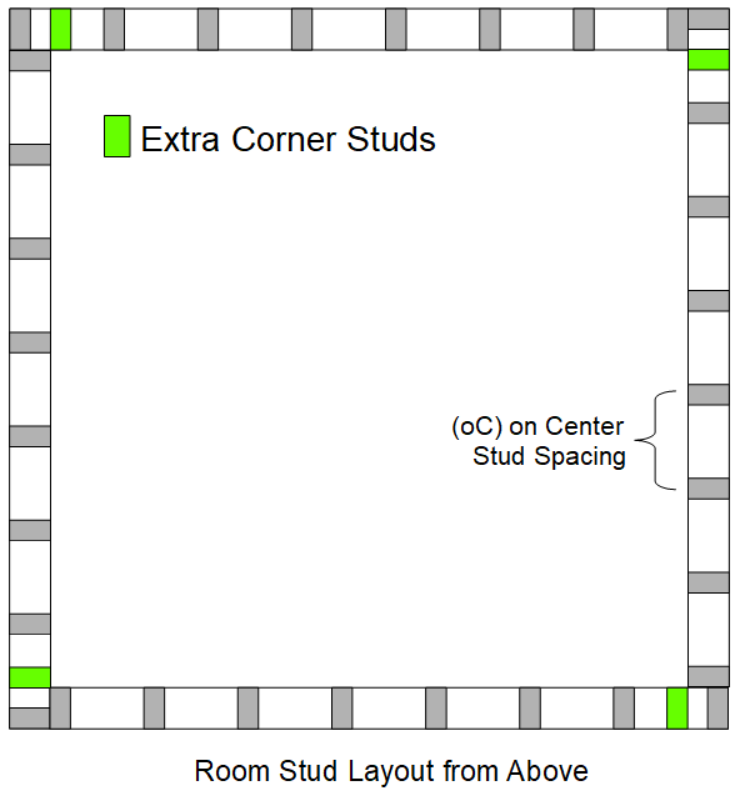

Computing the number of studs stud layout from above for a room in a room is done by computing the number of studs needed in the four walls. Each wall has the first stud (1) plus the number of studs needed for spacing (oC) AND one additional stud in the corner. This additional stud is often forgotten by non-professionals. It is spaced two inches (2") away from the last stud and makes a nailing base in the corner with the first stud from the adjacent wall.

Stud Framing Calculators

Studs for a Wall: Computes the number of studs (e.g., 2x4s) needed to build a wall based on the length of the wall and spacing.
Stud Cost for a Wall: Computes the cost of studs in a wall based on the number of studs needed to frame a wall and the unit price of a stud.
Blocking for a Wall: Compute the number and length of blocking boards.
Studs for a Room: Computes the number of stud boards required to frame a room based on the length of the four walls. Note: the stud count includes the extra studs at the corners where the walls meet.
Stud Cost for a Room: Computes the cost of stud boards required for a room based on the length of the four walls and and on the unit price of the boards.
Plate Boards for Room: Computes the number of top and bottom plate boards required for a room based on the length of the four walls and whether the top plate is doubled or single.
Plate Boards Cost for a Room: Computes the cost of plate boards required for a room based on the length of the four walls and whether the top plate is doubled or single and on the unit price of the boards.
Room Framing Cost: Computes the cost of studs and plate boards required for a room based on the length of the four walls and and on the unit price of the boards used for studs and plates.

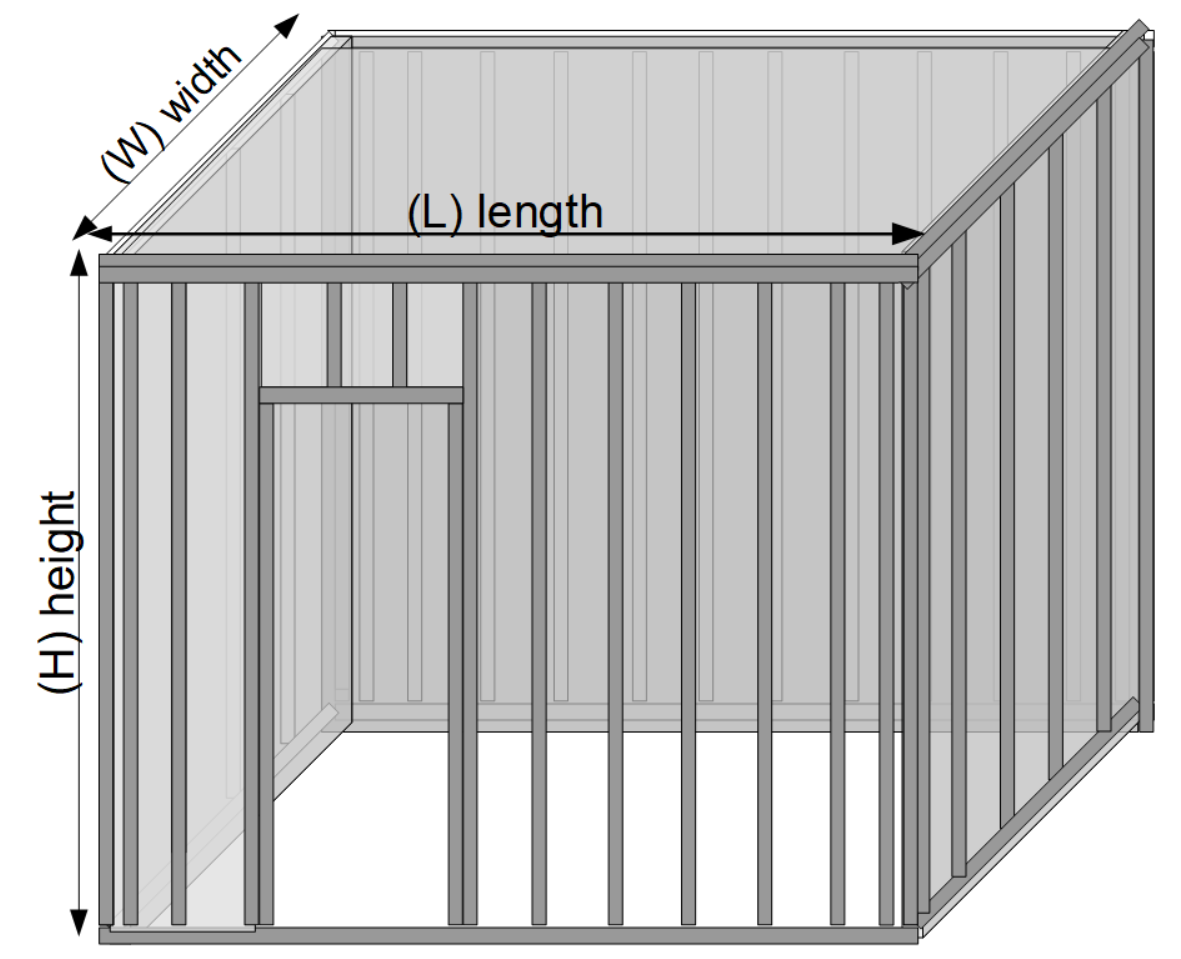

wall framed in studs Stud framed room from above with extra studs in corners Stud framed wall with blocking
