Pipe Flow Volume

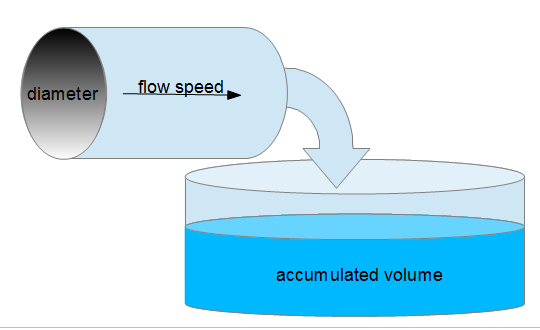

The Pipe Flow Volume calculator computes the total accumulated volume of liquid based on a flow rate and a duration of time.

INSTRUCTIONS: Choose units and enter the following:

• (fr) Flow Rate
• (d) Duration of flow

Volume of Flow (V): The calculator returns the total volume in gallons.  However, this can be automatically converted to compatible units via the pull-down menu.

The Math / Science

  Pipe Flow
The Volume from Flow equation is:

  V =  fr • d

where:

• V = Total volume over time
• fr = Flow rate
• d = Duration of flow
