Diagonal of a Square

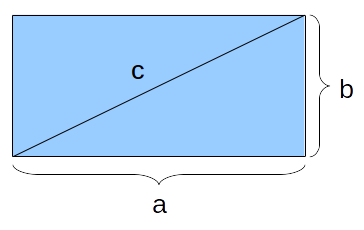

The Diagonal of a Squared calculator Rectanglecomputes the length of the diagonal of a rectangle.

INSTRUCTIONS:  Choose your preferred length units and enter the following:

• (a) Length of Side a of Rectangle
• (b) Length of Side b of Rectangle

Diagonal Length (c): The calculator returns the length of the diagonal (c) in feet.  However, this can be automatically converted to other length units (e.g. centimeters) via the pull-down menu.

The Math / Science

A rectangle is a four sided polygon (quadrilateral) with four squared corners (90^o).  The diagonal is computed using the Pythagorean formula.
