Cylinder Bore Diameter

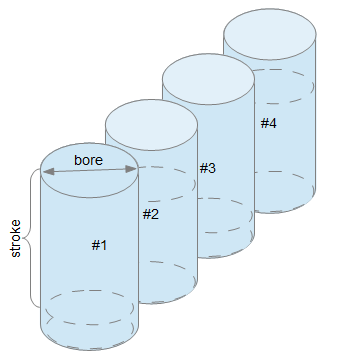

The Cylinder Bore Diameter calculator computes the cylinder bore (diameter) needed based on the total engine volume (displacement), the cylinder stroke length and the number of cylinders.

INSTRUCTIONS:  Choose your preferred units and enter the following information:

• (v) Total Engine Volume (displacement)
• (s) Stroke Length of Cylinders
• (c) Number of Cylinders

Cylinder Bore (D): The calculator returns the diameter of the bore needed bore to achieve the desired displacement (v).  The bore size is in inches.  However, this can be automatically converted to other units (e.g. centimeters or mils) via the pull-down menu.

The Math / Science

The formula for the Cylinder Bore Diameter is:

   `D = 2 * sqrt(V / ( PI * S * n) )`

where:

• D = Cylinder Bore Diameter
• V = Volume or Displacement of engine
• S = Stroke Length of pistons
• n = Number of Cylinders
