The Engine Compression Ratio calculator computes
Single Engine Cylinder the compression ratio (CR) of a combustion engine cylinder.
INSTRUCTIONS: Choose units (default is cubic inches), and enter the following:
- (V1) Total Volume of Cylinder.
- (V2) Combustion chamber volume (aka clearance or compression volume)
Compression Ratio: The calculator returns the Compression Ratio (CR).
The Math / Science

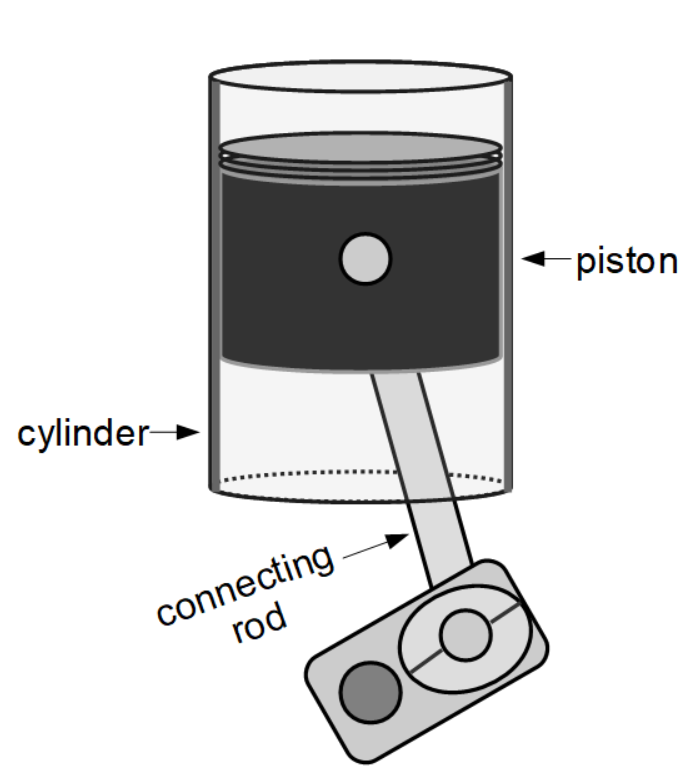

An engine's compression ratio is a measure of the ratio of the volume of the combustion chamber with the piston at its bottom dead center (BDC) to the volume with the piston at its top dead center (TDC). It's essentially the ratio of the maximum volume of the cylinder to the minimum volume. This ratio indicates how much the air-fuel mixture is compressed inside the cylinder before ignition. Higher compression ratios generally lead to greater engine efficiency and power output, as they allow for more efficient combustion of the air-fuel mixture. However, excessively high compression ratios can lead to engine knocking or pre-ignition, especially with lower octane fuels. Therefore, the compression ratio is a crucial design parameter in engine development, balancing performance, efficiency, and reliability. Different types of engines (e.g., diesel vs. gasoline) and applications may have different optimal compression ratios.
The formula for Compression Ratio is:
CR = (V1 + V2)/V2
where:
- CR = Compression Ratio
- V1 = Total Volume of Cylinder
- V2 = Combustion Chamber Volume
