Bore Stroke Ratio

The Bore Stroke Ratio calculator computes the ratio between a cylinder's bore length (b) and its stroke length (s).

INSTRUCTIONS: Choose units and enter the following:

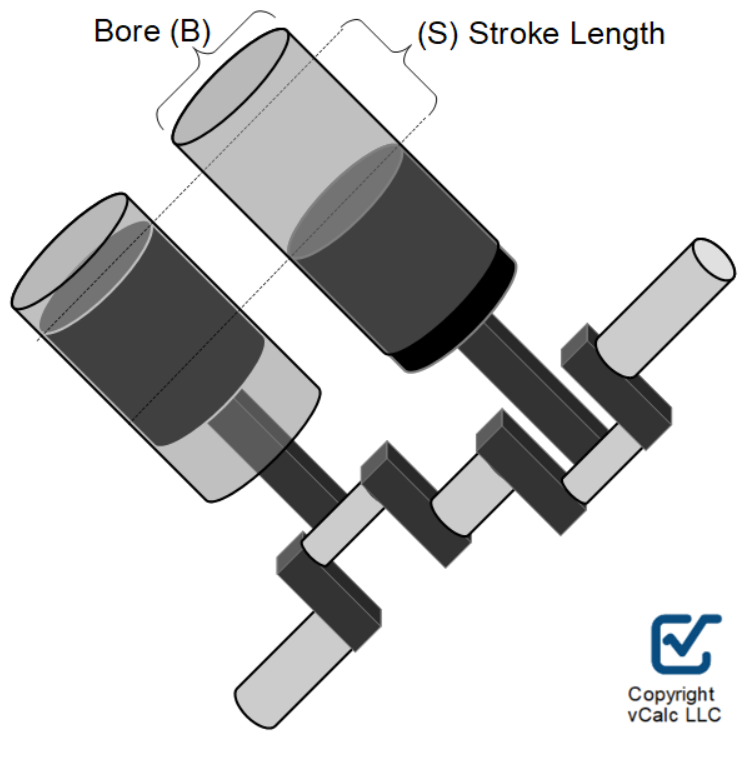

• (B) Bore of Cylinder
• (S) Stroke Length

Bore Stroke Ratio (BSR): The calculator provides the ratio of the bore (diameter) to the cylinder stroke length.

The Math / Science

The formula for the bore stroke ratio is:

     BSR = B / S

where:

• BSR = bore stroke ratio
• B = Bore Diameter
• S = Stroke Length of the Piston Travel
